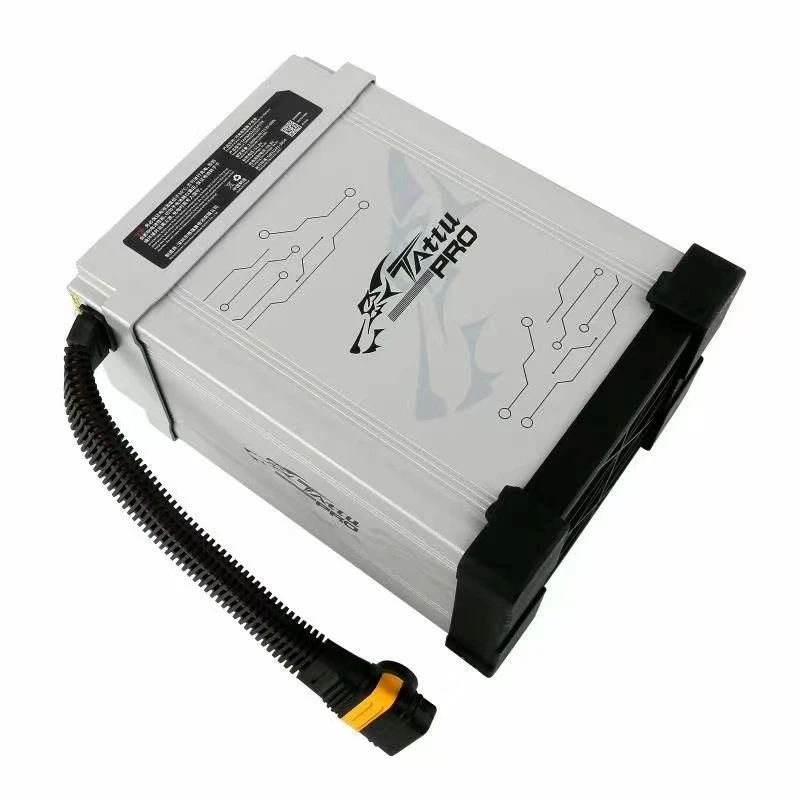

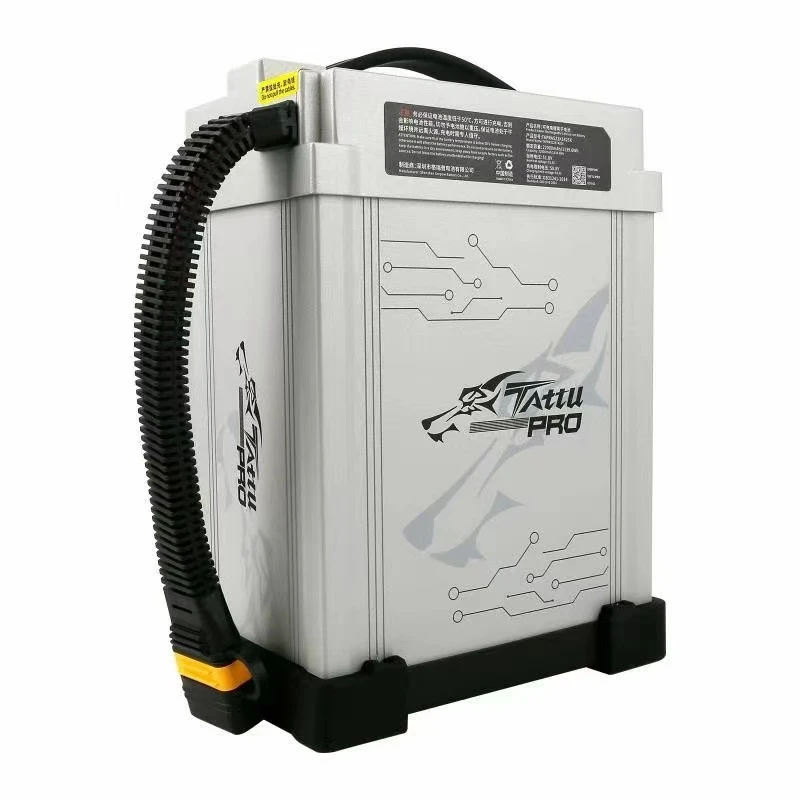

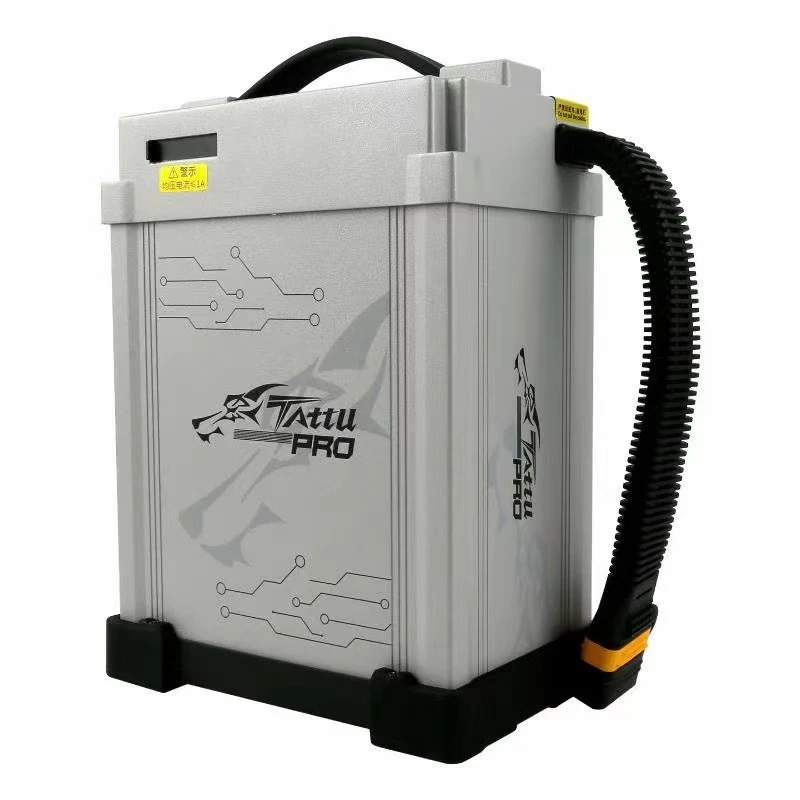

TATTU Swift Pro 12S1P 44.4V 22000mah 25C Fast Charging Intelligent Battery With AS150U Plug

Specifications:
Item brand: Tattu
Product model: Tattu PRO 12S1P 44.4V 22000mah 25C fast rechargeable battery
Standard capacity: 22000mAh @ 0.2C discharge
Minimum capacity: 21450mAh @ 0.2C discharge
Standard voltage: 44.4V
Open circuit voltage: 49.8 ~ 50.4V (Cell 4.15 ~ 4.20V)
Internal impedance: ≤25mΩ
Dimensions: 174 x 117 x 238mm
Weight: Approximately 6400g
Standard charge: Charge to 11A CC (rated current) 50.4V, then charge until CV (constant voltage 50.4V) charging current is ≤0.02C or less
Standard charging time: about 3 hours
Fast charging: Charged until the rated current is 55A, the rated voltage is 50.4V, and the charging current is ≤0.02C or less.
Fast charging time: about 0.5 hours
Standard discharge: Rated current 11A, final voltage 42V
Maximum discharge current: Constant current 100A

Main Features:
1.  Overcharge Alarm and Release
When the voltages of any single cells are beyond the overcharge limit and the duration exceeds the latency time, the BMS will define it as overcharged, in this case, the white and red LEDs will be light up at the same time to give an alarm.

2. Over Discharge and Recovery
When the voltage of single cells are lower than over discharge limit and the duration is longer than the latency time,the BMS will define it as over discharged. The white and red LEDs will be off and the alarm will be released until the cell voltages are back to normal status.

3. Over Temperature Alarm and Recovery
The over-temperature protection will be activated when the BMS detects the temperature rises or falls to the alarm value and the duration exceeds the latency time, until the temperature falls or rises to the temperature recovery value.

4.  Over-current and Recovery
When charging or discharging current is over the limit and the duration is longer than the latency time, the BMS will define it as over current. The alarm will be released until the current is back to normal status. No indicators will alarm when the discharge current exceeds the limit, but the white light will be on as an alarm when the charging current is over limit.

5.  Voltage Difference Alarm of Single Cell
5.1 When the voltage difference is ≥300mV under any status, the red light is on as alarm and record.
5.2 When Voltage <3.7V, and the voltage difference returns to <280mV, the alarm will release and the red light is off.
5.3 When Voltage ≥3.7V, and the voltage difference≥100mV, the white light is on as alarm and record. When it returns to <80mV, the white light will be off.

6. Software Upgrading Function
The software can be updated. Directly turn the CAN port to USB port, then connect to computer to realize software update.

7. Battery Log Record Function
BMS can record all using data of battery, including cell voltage, current, battery temperature, cycle times and error status times etc.

Operation Instruction
1. of control board and LEDs

2. Button Function
    2.1 Check: When battery is power-off, press the button shortly, the LED indicates the remaining capacity, then it will be off after 2 seconds;
    2.2 Power on: When the battery is power-off, press the button shortly,the LED indicates the remaining capacity, press and hold the button for more than 2 seconds before the LEDs off, the LEDs will light up from the right to the left, then the battery will be power on, remaining capacity will be indicated on LED.
    2.3 Power off: When the battery is power-on, press the button shortly , 4 LEDs are flash, press and hold the button for more than 2 seconds, the LEDs will light off from the left to the right, then the battery will be power off.
    2.4 Health indicator: When the battery is power-off, press and hold the button for more than 5 seconds, the LEDs will display the battery’s remaning lifetimes.

3. Smart capacity indicator
    There are 4 LEDs on the BMS to indicate battery capacity in 8 levels;
    Note:● on ; ○ off; ⊙ flash
    3.1 Capacity in standby and discharge status

    3.2 Capacity in charging status

    Note: Charging when battery is power-on , battery indicators will be off 10 minutes after fully charged .
              Charging when battery is power-off, battery indicators will be off 10 minutes after fully charged.

    3.3 Remaining life times
          Press and hold the button for 5 seconds when the battery is power-off, LEDs indicate the current remaining battery life times.

4. Status LEDs Indication
    4.1  Red LED: indicates the storage mode, showing the battery is currently in storage mode
    4.2  Orange LED: Low-voltage warning indicator, indicating the battery needs to be charged;
    4.3  White LED: Battery maintenance status
    4.4  Error indication: Red and white LED are on at the same time;

5. Sleeping mode
    When the battery is turned on for 10 minutes, BMS will enter into the sleeping mode to reduce the self-consumption, it can be activated to normal working status with charging or discharging. When the voltage of any single cell is lower than 3.65V, in order to keep the battery in safety, the BMS will enter the secondary power-saving mode. In this mode, the battery pack needs to be charged in time to avoid irreversible damage to the battery; if the battery is damaged, the user must scrap the battery or return it to the original factory for safety inspection!
If the battery enters deep sleeping mode due to extremely low capacity and long-term idle, please power it on manually and charge the battery immediately.

Note: Due to the pure battery, shipping time will take longer than usual and shipping will be more expensive than normal items.
