OVERVIEW
- Form-Fitted Armored Cage
- Fits BMPCC 4K & BMPCC 6K Cameras
- Adjustable NATO Rail Top Handle
- 1/4″-20, 3/8″-16 & M4 Mounting Holes

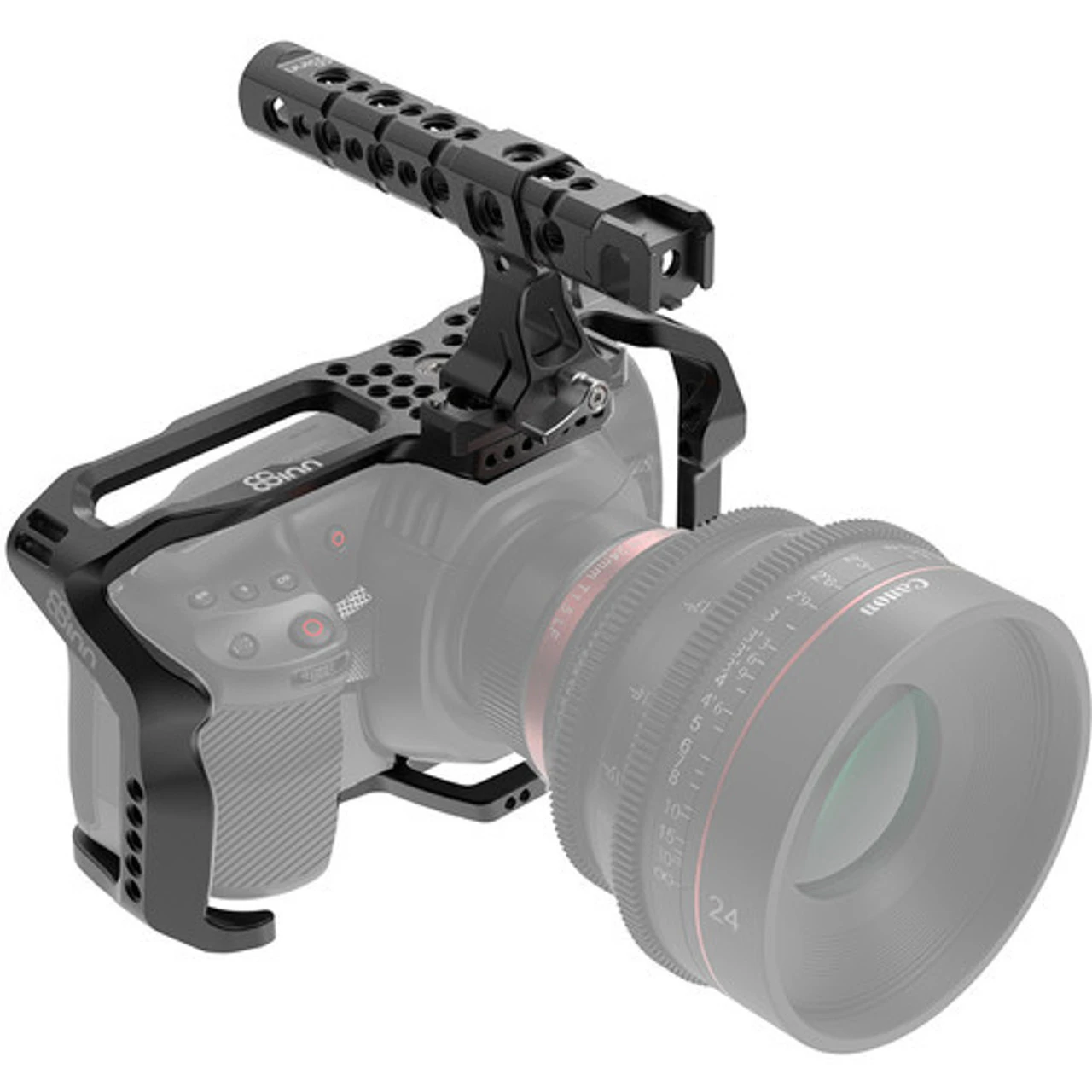

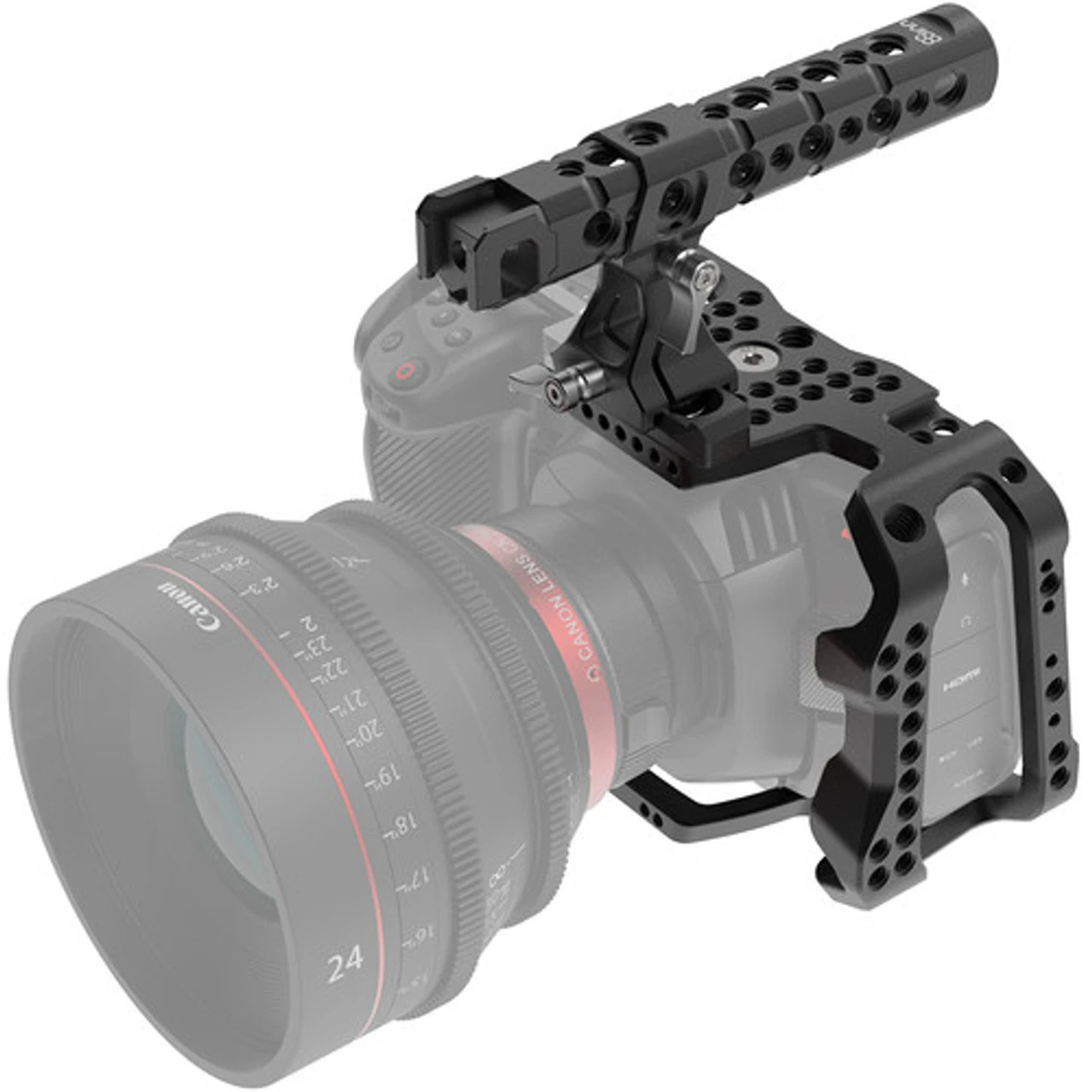

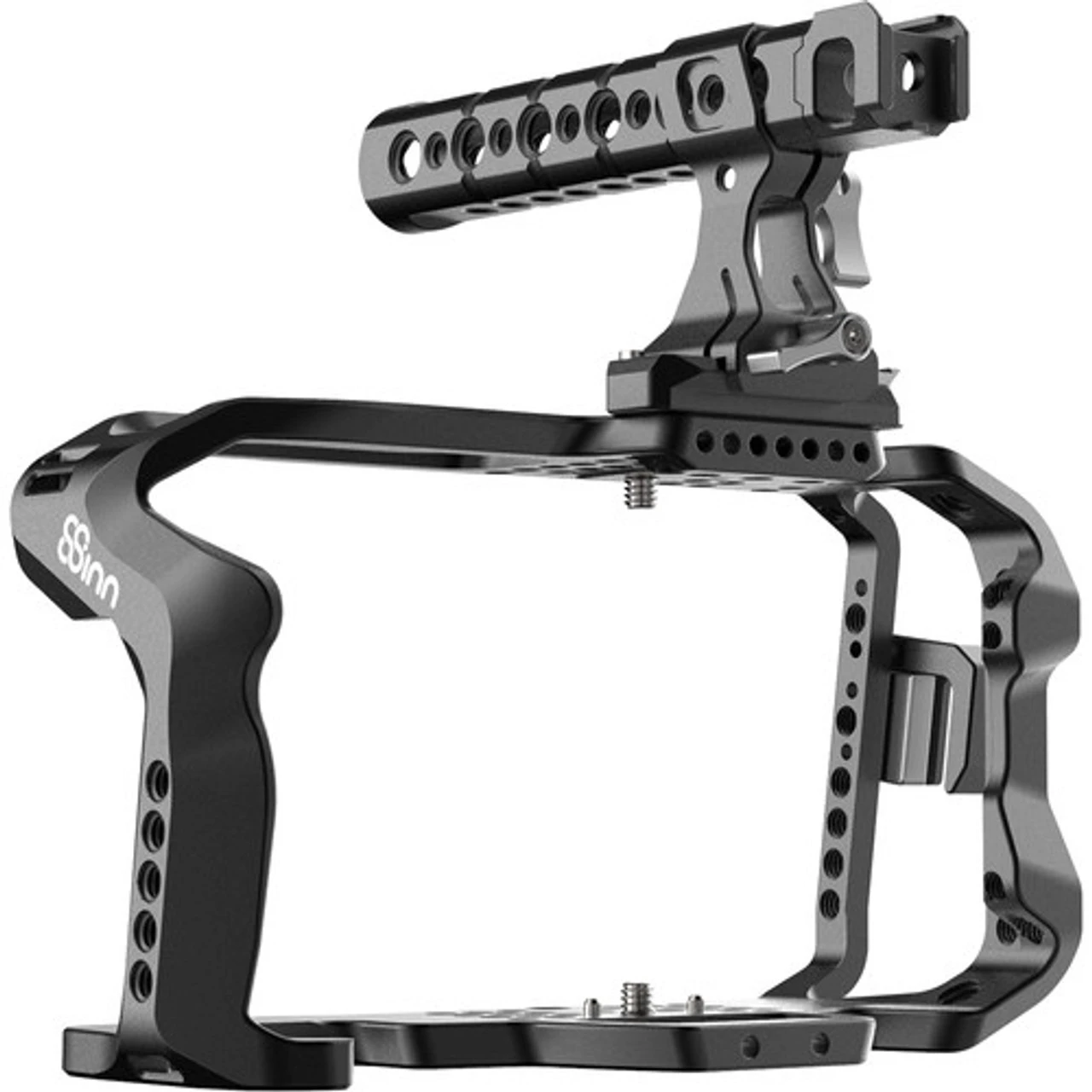

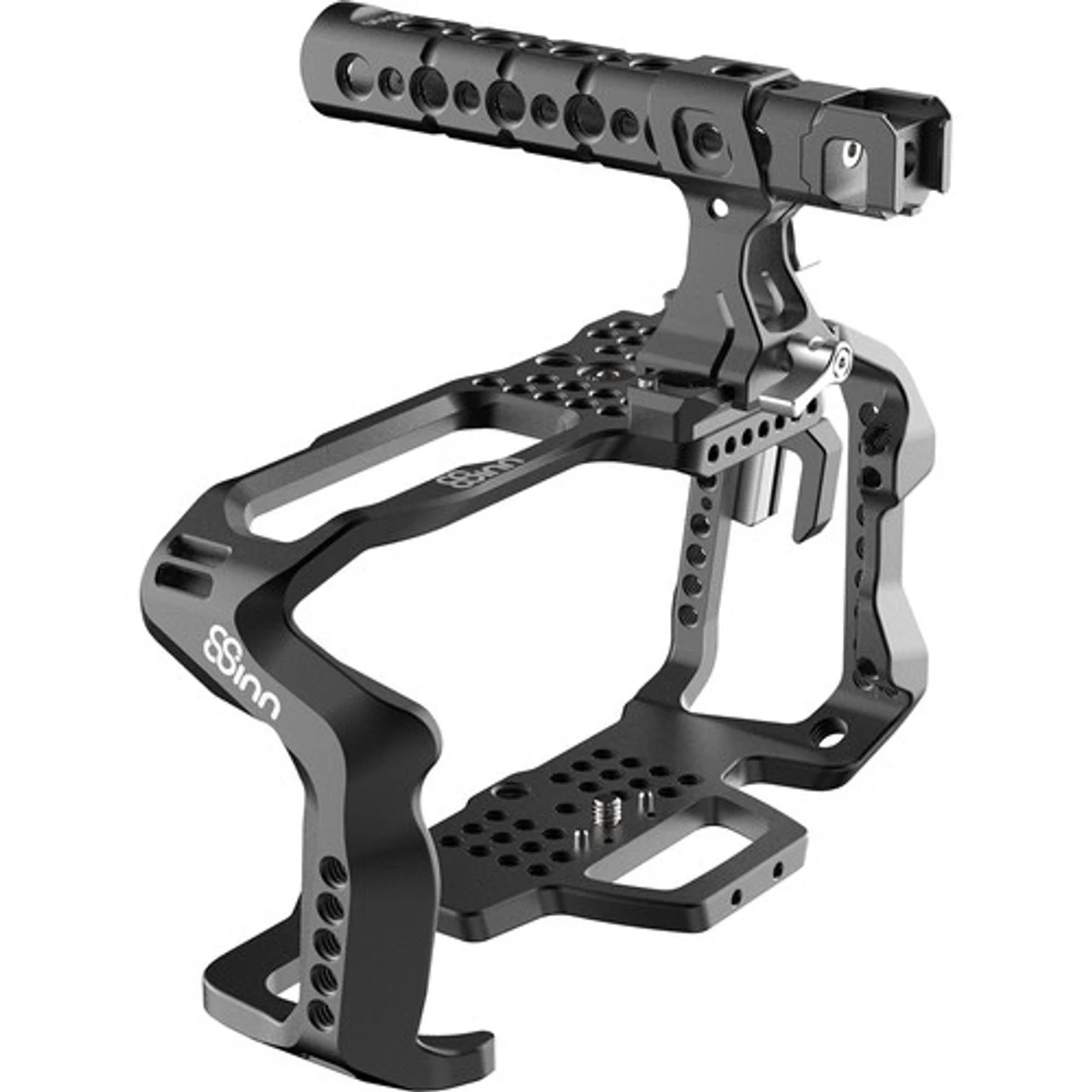

The Cage with Top Handle Pro Kit for Pocket Cinema Camera 4K/6K from 8Sinn pairs a dedicated aluminum BMPCC 4K/6K cage with an adjustable NATO rail top handle.
8Sinn Cage with Cable Clamp for Blackmagic Design Pocket Cinema Camera 4K/6K

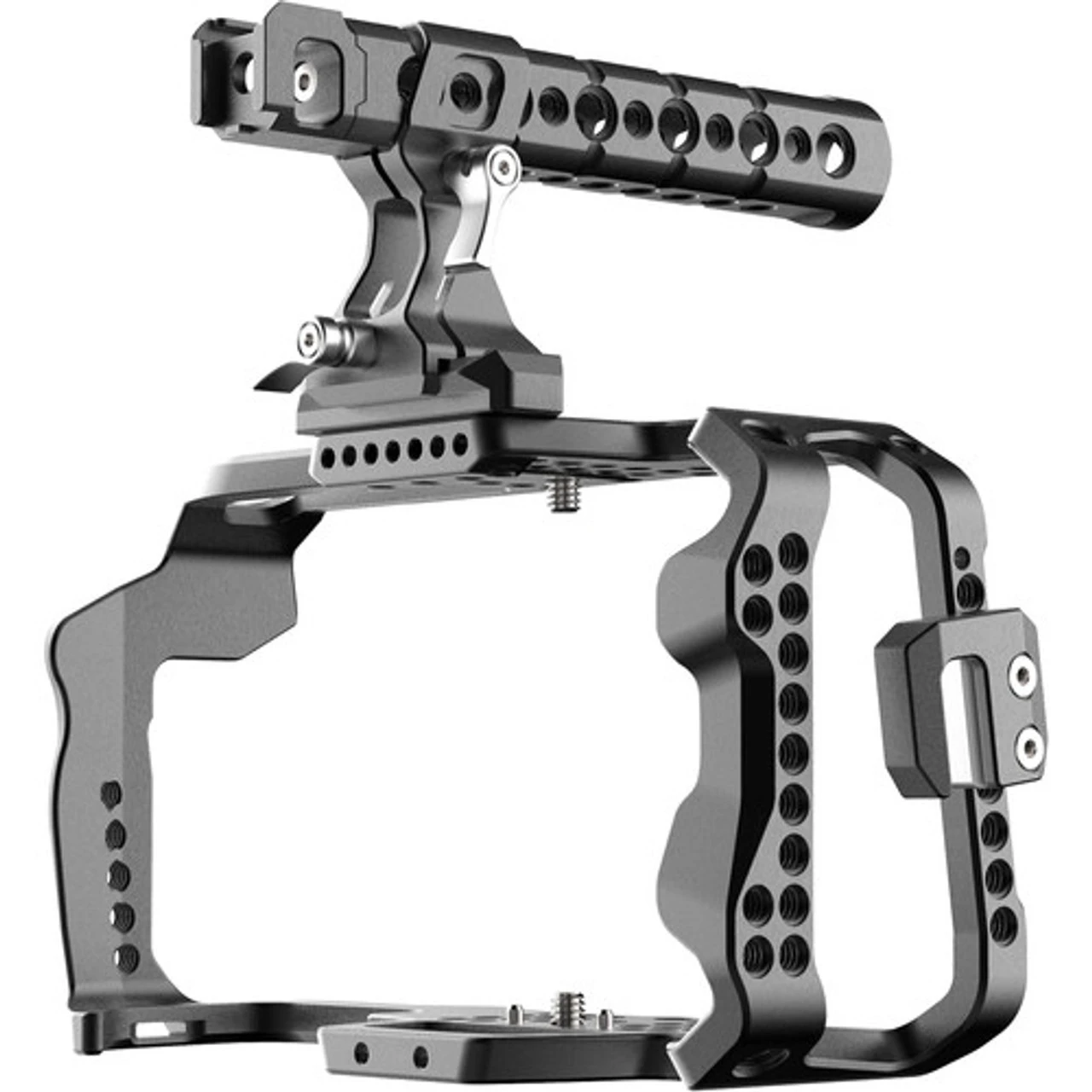

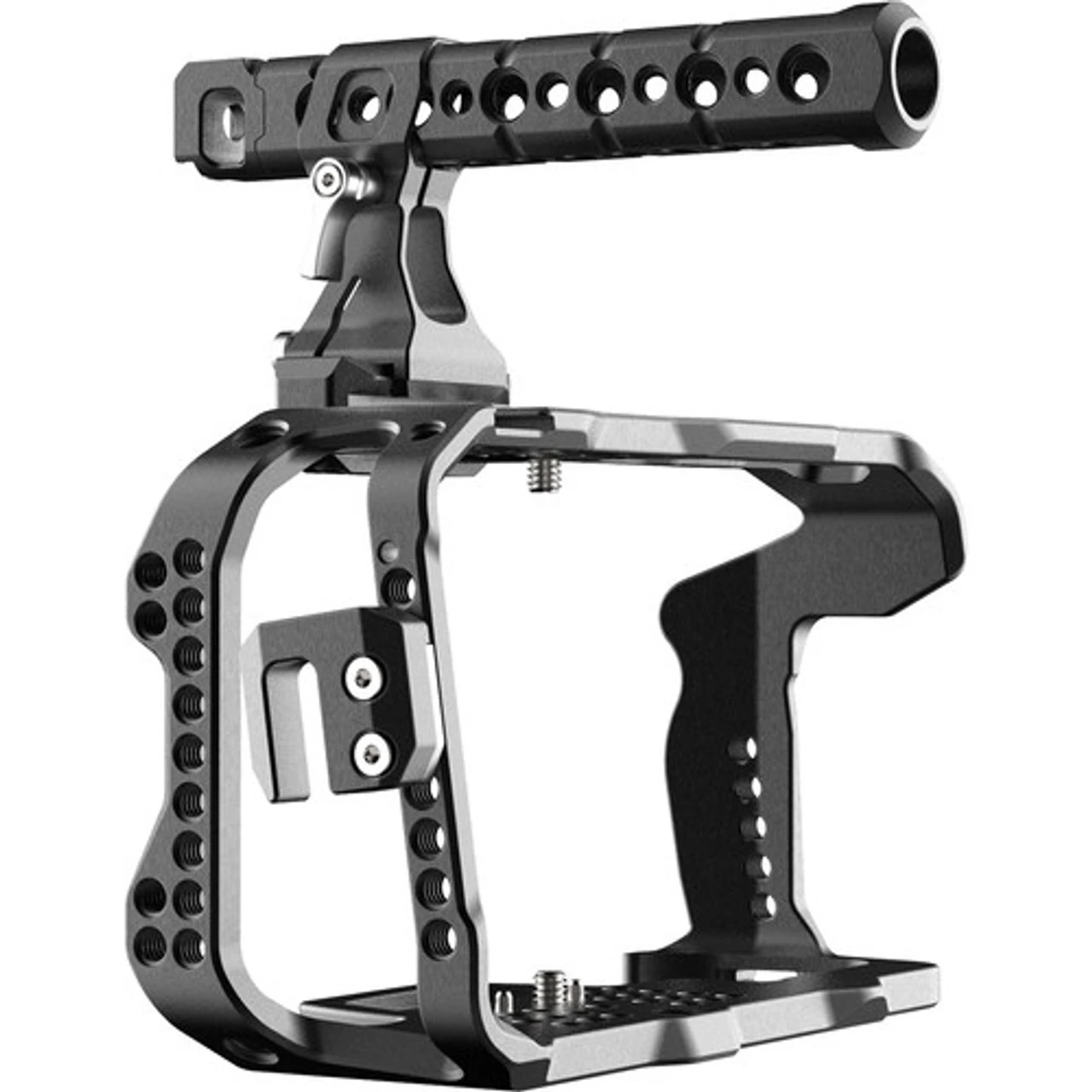

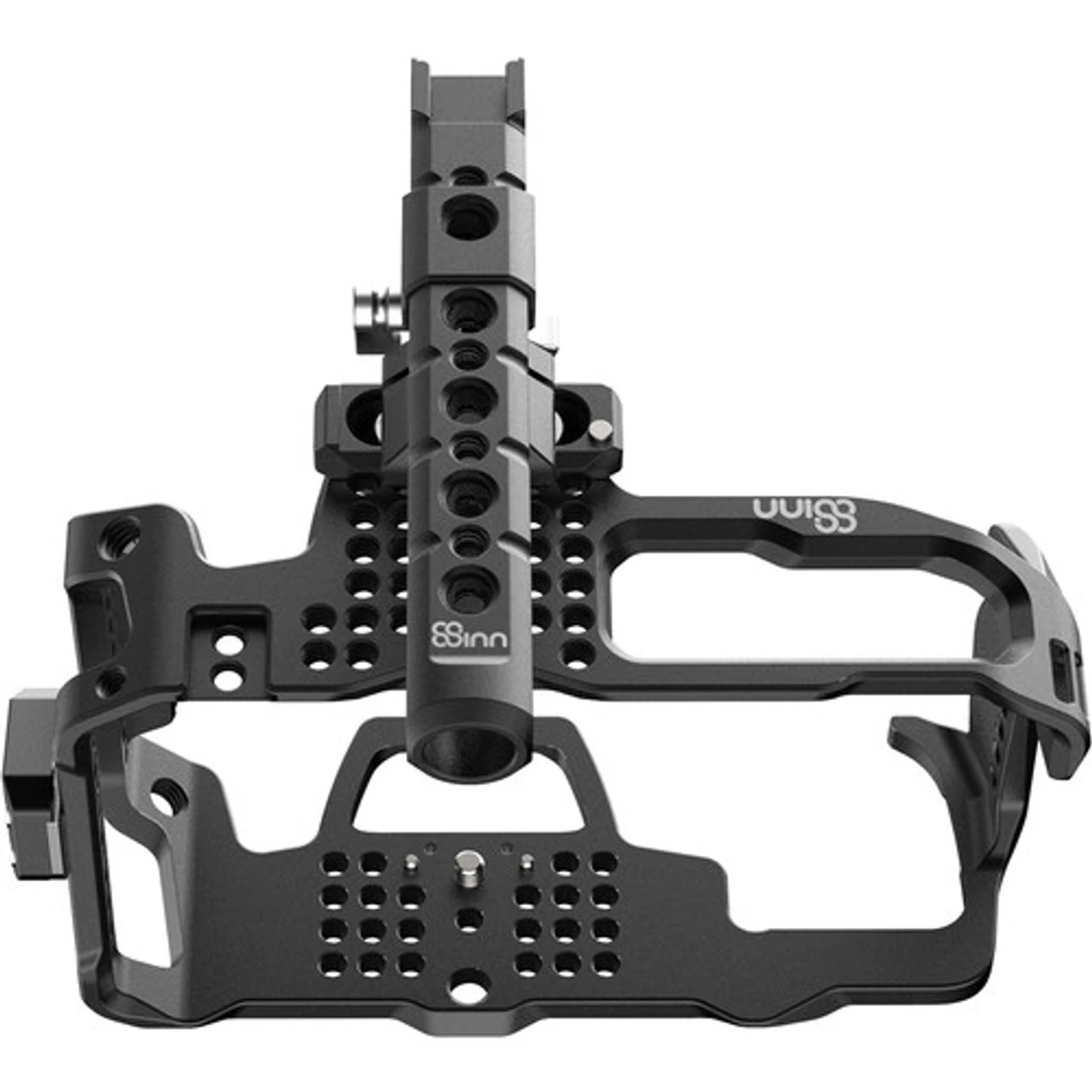

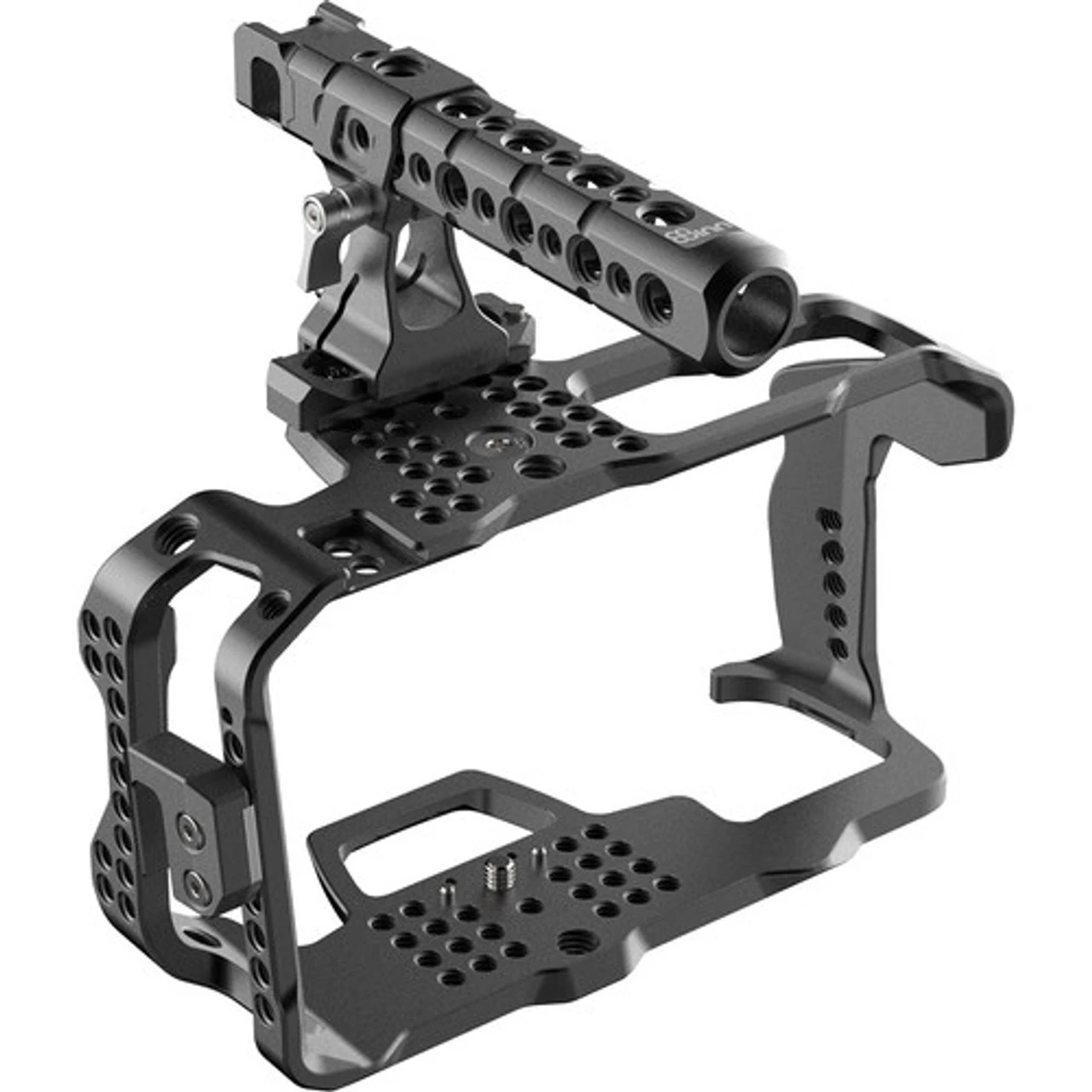

The Cage for Blackmagic Design Pocket Cinema Camera 4K/6K from 8Sinn is a CNC-machined, anodized aluminum cage with integrated accessory mounting holes specifically designed for the BMPCC 4K and BMPCC 6K. The cage features mounting holes on the top and bottom that align with your camera’s top and bottom 1/4″-20 mounting points, as well as two locating pins that help prevent the camera from twisting in the cage. A built-in cold shoe and threaded 1/4″-20 mounting holes allow you to mount accessories without stressing your camera’s body.

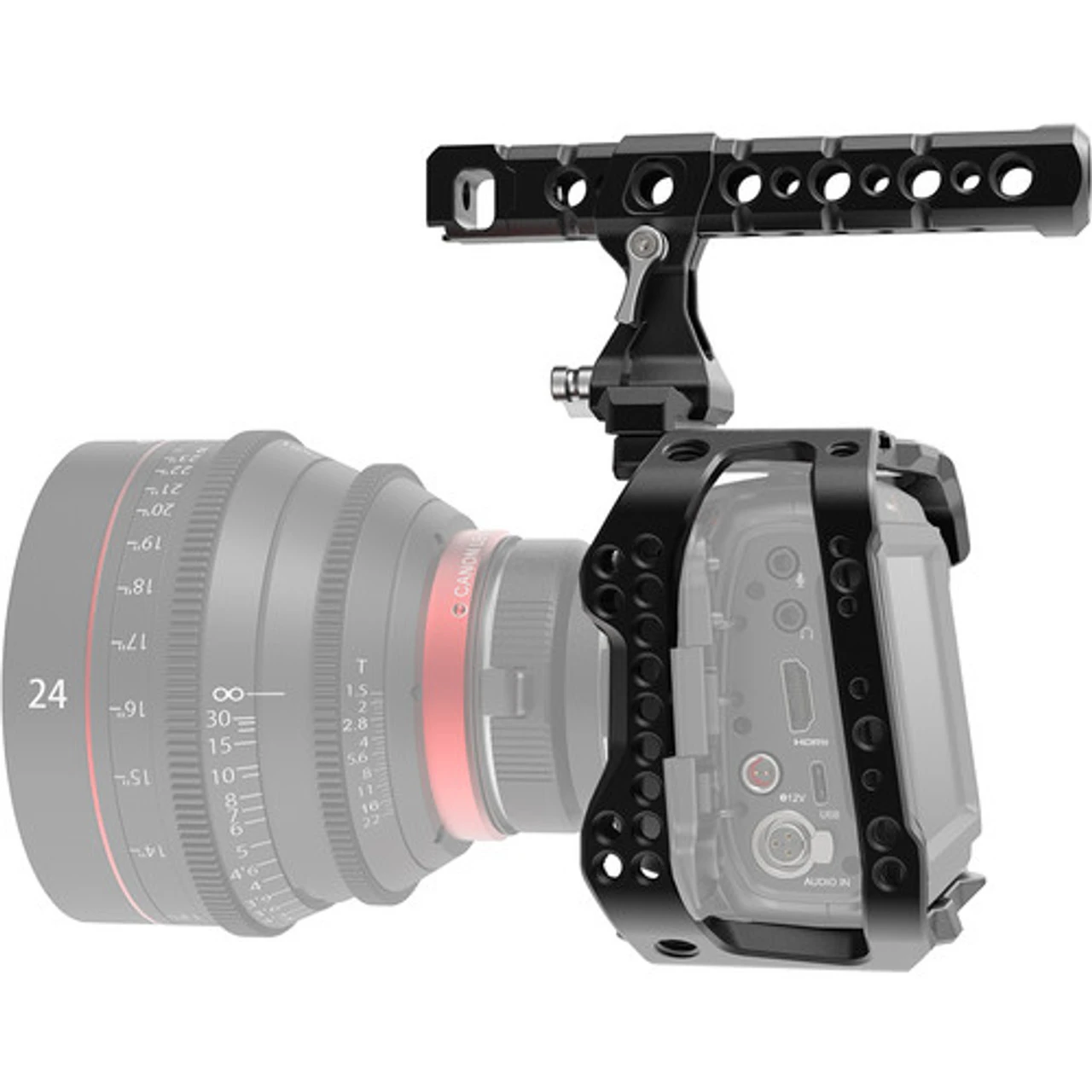

The cage allows access to all camera functions as well as battery and media doors, and it has slots that allow you to add a neck strap. In addition to the 1/4″-20 mounting holes, a single 3/8″-16 threaded hole is included in the top of the half cage for additional accessory mounting, and multiple M4 threaded holes are tapped into the front of the top plate to enable mounting the 8Sinn Top Handle Basic (not included). An included HDMI cable clamp mounts on the side of the cage and is adjustable to fit your HDMI cable.
Compatibility
- Blackmagic Design Pocket Cinema Camera 4K
- Blackmagic Design Pocket Cinema Camera 6K
Features
- Your camera is secured in the cage by the top and bottom 1/4″-20 mounting points.
- The cage features a variety of 1/4″-20, 3/8″-16, and M4 threaded accessory mounting holes. This allows you to mount accessories without stressing your camera’s body.
- The included HDMI cable clamp helps prevent accidental kick-outs of an attached HDMI cable.
8Sinn Top Handle Pro with NATO Rail (2.4″)
The 8Sinn Pro Top Handle mounts easily on your camera cage using the included 2.4″ NATO rail. The NATO rail mount makes it easy to attach and remove the handle and slides to help balance your camera. It features a single 15mm rod bracket, two cold shoe mounts, and multiple 1/4″-20 and 3/8″-16 accessory threads.
SPECS
8Sinn Cage With Cable Clamp For Blackmagic Design Pocket Cinema Camera 4K/6K Specs
| Accessory Mounting | Top: 31 x 1/4″-20 Thread, 1 x 3/8″-16 Thread Sides: 22 x 1/4″-20 Thread, 2 x Anti-Twist 1/4″-20 Thread Base: 23 x 1/4″-20 Thread, 1 x 3/8″-16 Thread |
| Camera Mounting | 1/4″-20 Screw |
| Tripod Mounting | 1/4″-20 Thread, 3/8″-16 Thread |
| Shoe Mounting | Top: 1 x Cold Shoe |
| Rosettes | None |
| Support Type | Cage |
| Grip Type | None |
| Camera Compatibility | Blackmagic Pocket Cinema Camera 4K |
| Construction | Aluminum |
| Dimensions | 7.66 x 4.41 x 2.95″ / 19.45 x 11.2 x 7.5 cm |
| Weight | 10.3 oz / 291 g |
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 9.3 x 5.8 x 3.1″ |
8Sinn Top Handle Pro With NATO Rail (2.4″) Specs
| Grip Type | Topside Handle with Cheeseplate-Style Handle |
| Rotation | No |
| Built-In Controls | None |
| Attachment Method | Attaches via Rail |
| Rod Standard | 15 mm Single Rod |
| Rod Ports | 1 x 15 mm Rod Port |
| Accessory Mounting | Multiple x 1/4″-20 Thread Multiple x 3/8″-16 Thread |
| Shoe Mounting | 2 x Built-In Cold Shoe Slot |
| Rosettes | None |
| Rail Mounting | 1 x NATO Rail Clamp 1 x NATO Rail That Attaches via 2 x Included 1/4″-20 Screw |
| Construction | Aluminum |
| Dimensions | 6.2 x 2.7 x 2.3″ / 158 x 69 x 59 mm |
| Weight | 5.1 oz / 145 g |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 9.2 x 5.7 x 3.1″ |
